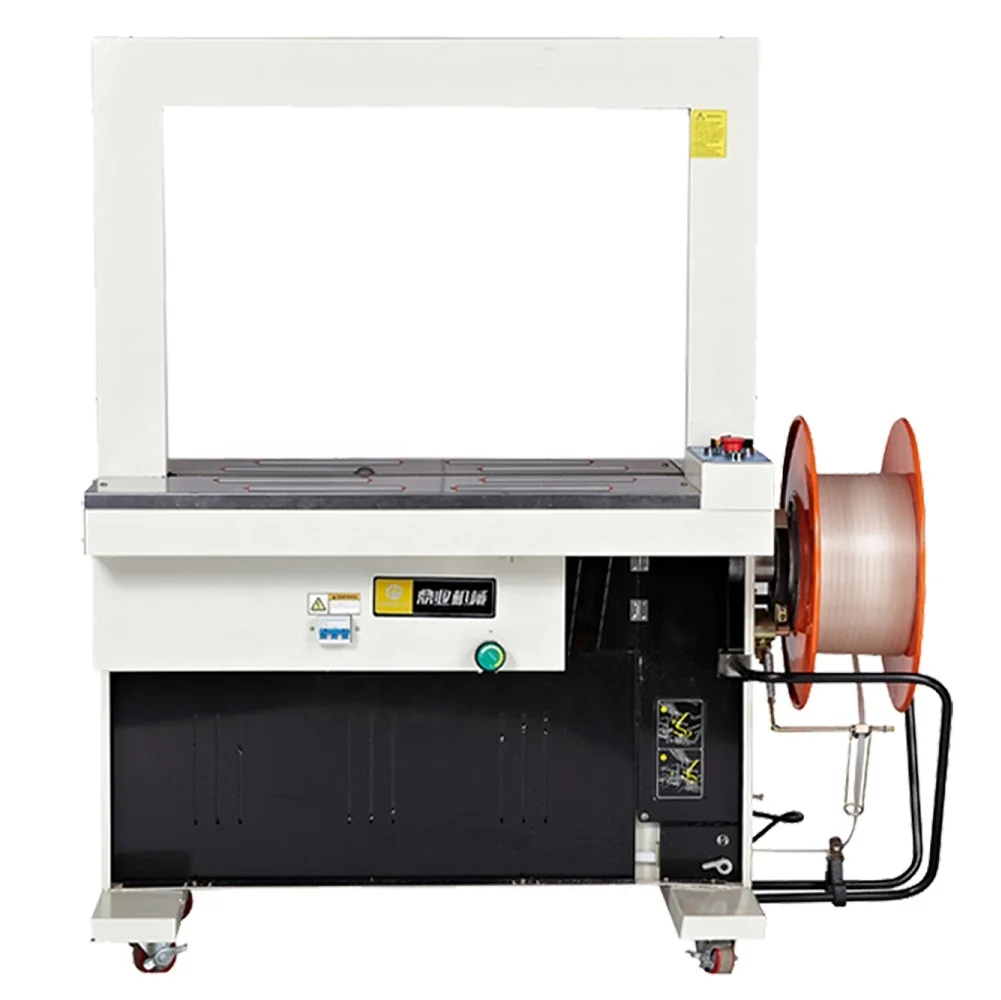

DBA200 Automatic strapping machine

Description

This machine is the most general-purpose type, featuring a high strapping speed and a low failure rate; The amount of strap storage can be freely adjusted based on the dimensions of the bow frame and the dimensions can also be selected freely according to the customer’s needs.
Model
DBA200
Power source
380V 50HZ, 850W
Max strapping size
850*600mm (W*H)
Min strapping size
200*200mm (W*H)
Strapping speed
23pcs/min
Tension
5~80kg
Work table height
820mm
Machine size
600*1412*1540mm

The Alfpack Advantage

12-Month Warranty

Coverage on PLC, motors, and heating elements.

Global Spare Parts

DHL dispatch within 24 hours for urgent parts.

Aftersale Support

Direct access to engineers, not just sales staff.

How the QSJ-5040A Wrapping Process Works

The system follows a 4-step automated cycle designed to minimize human error:

01

Auto Feeding

Bottles are conveyed via the stepless speed belt into position.

02

Pneumatic Pushing

The sensor triggers the pusher to move product through the PE film curtain.
03

Sealing & Cutting

The hot blade seals the sleeve instantly. Sensors prevent accidental cuts.
04

Shrinking & Cooling

Package passes through the tunnel and is set by the super cooling fan.
