Description
Characteristic:

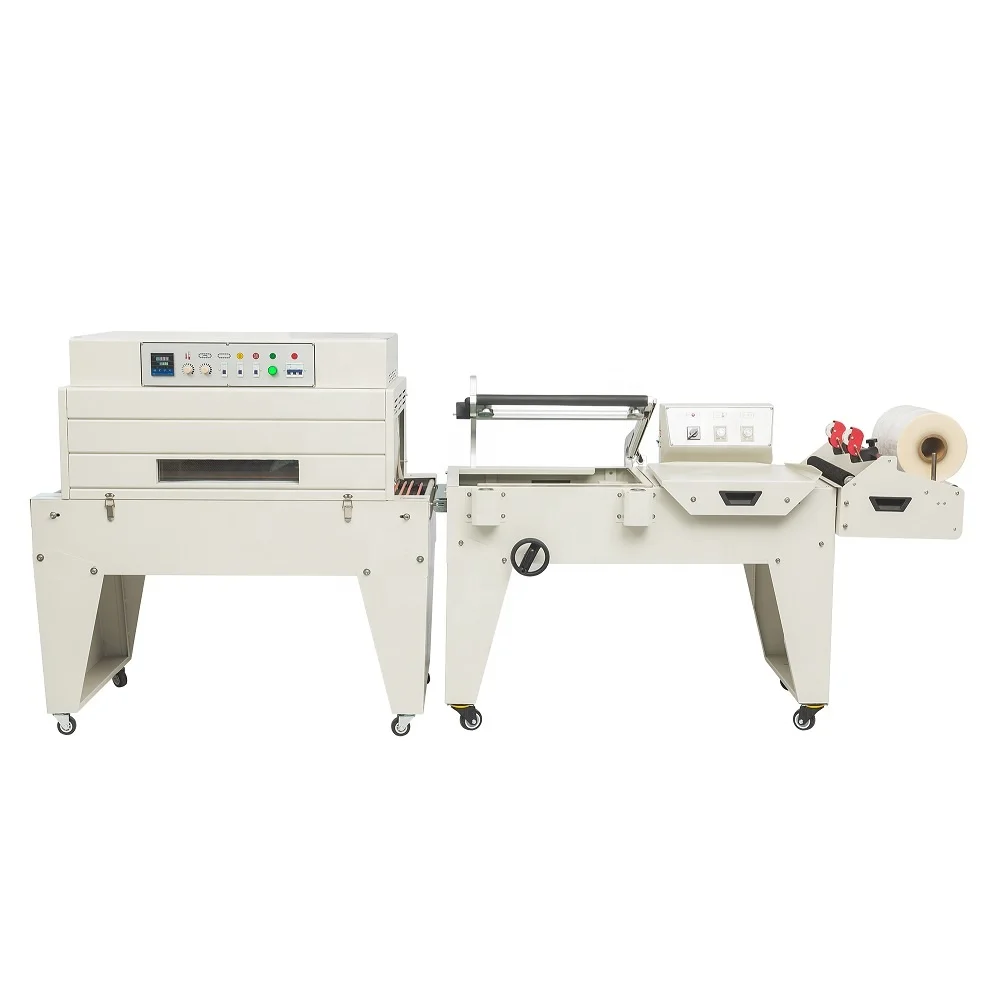

1. The machine adopts heating and stickiness free seal knife, which ensures the machine running well and without smoke.
2. The time, transferring the products to the tunnel after sealing and cutting, is adjustable.
3. Working with shrink tunnel, high efficiency, more convenient.
|
Model
|
DFQA450
|
Model
|
DSA4525
|
|
Voltage
|
AC220V 50-60HZ
|
Voltage
|
220-240V/50-60HZ
|
|
Heater power
|
1KW
|
Heater Power
|
8.6kW
|
|
Seal-cut time
|
0-3s
|
Conveyor speed
|
0-10m/min
|
|
Max sealing size(L*W)
|
L+H<550mm, W+H<450mm
|
Workroom size(L*W*H)
|
1000*450*250mm
|
|
Max conveyor loading
|
15kg
|
Max conveyor loading
|
5kg
|
|
Machine size(L*W*H)
|
1720*740*1050mm
|
Machine size
|
1260*670*1290mm
|
|
Machine weight
|
116kg
|
Machine weight
|
115KG
|
|
Cutting film
|
POF,PVC
|
Shrink film
|
POF,PVC
|
|
Packing size
|
1500*850*910mm
|
Packing size
|
1400*780*900mm
|
Improvement
1.ïMuch Stronger film holder with handle, easier to put the film on and adjust easier.
2.ïImproved needle wheel, with new design and stronger protect.
3.ïFilm holder lock, fix the holder in one position. High-quality power switch, more safety, more care.
4.ïCeramic elements holder, can be used for long time and easier to be replaced.
5.ïNew design of electrical magnet with cover, more bigger, more stronger and more beautiful .
6.ïImproved conveyor lifting handle ,to ensure adjust the height of the conveyor more easier.
7.ïImproved of the “Gas Spring “,to ensure the machine more stable and not easy to broken .
8.ïMore simple Control panel ,easy to operate.
9.ïinside the electric box , all parts looks more regular.
10. New cover for the support ,that can protect the support well, and make it more stable.
11. Smart design for conveyor, much easier to replace the conveyor belt.
