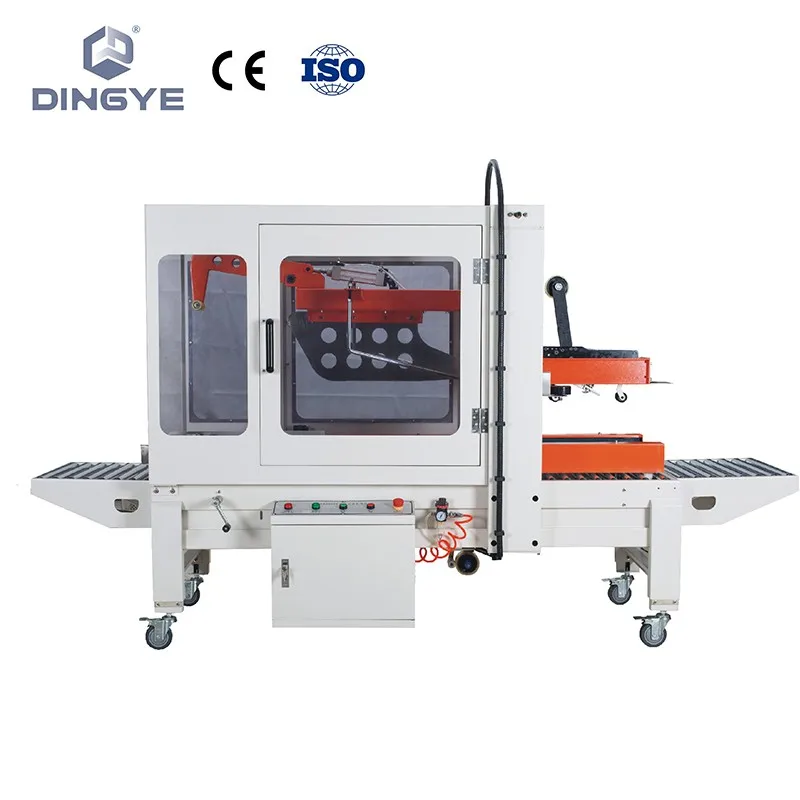

FXZ5050 Automatic Folding Carton Sealer and box sealing packaging machine with shield

FXZ5050 Automatic Folding Carton Sealer and box sealing packaging machine with shield

Get Factory Quote
Download Tech Sheet

Description

FXZ5050 sealing folding machine is beautiful, safe and generous, the seat is strong and stable. The various structures meet the CE standard, wherein the protective cover is the optional part of the customer. The cutting knife protection device in the sealing head obtains the national patent.

The folding &sealing machine adopts the high holding power of PVC adhesive tape on the carton the following transmission, smooth transmission and sealing on the sealing tape, rapid, easy to adjust, can be a one-time adhesive tape printing, folding cover and the upper and lower sealing action. Greatly improve the appearance of the product. It is widely used in household appliances, textiles, food, cosmetics, daily provisions, medicine, chemical industry and other manufacturing industries.

Model
FXZ5050
Power supply
AC220V/50,AC110V/60Hz 420W
Max. packing dimension
600(L)*500(W)* 500(H) mm
Min. packing dimension
200 (W)*160 (H)*200 (L)mm
Speed
18m/min
Work table height
600-720mm
Air pressure
2/3L,5Kg f/cm²
Width of adhesive tape
48mm. 60mm. 75mm
Machine size
2840(L)*1010(W)*1580-1700 (H)mm

The Alfpack Advantage

12-Month Warranty

Coverage on PLC, motors, and heating elements.

Global Spare Parts

DHL dispatch within 24 hours for urgent parts.

Aftersale Support

Direct access to engineers, not just sales staff.

How the QSJ-5040A Wrapping Process Works

The system follows a 4-step automated cycle designed to minimize human error:

01

Auto Feeding

Bottles are conveyed via the stepless speed belt into position.

02

Pneumatic Pushing

The sensor triggers the pusher to move product through the PE film curtain.
03

Sealing & Cutting

The hot blade seals the sleeve instantly. Sensors prevent accidental cuts.
04

Shrinking & Cooling

Package passes through the tunnel and is set by the super cooling fan.
