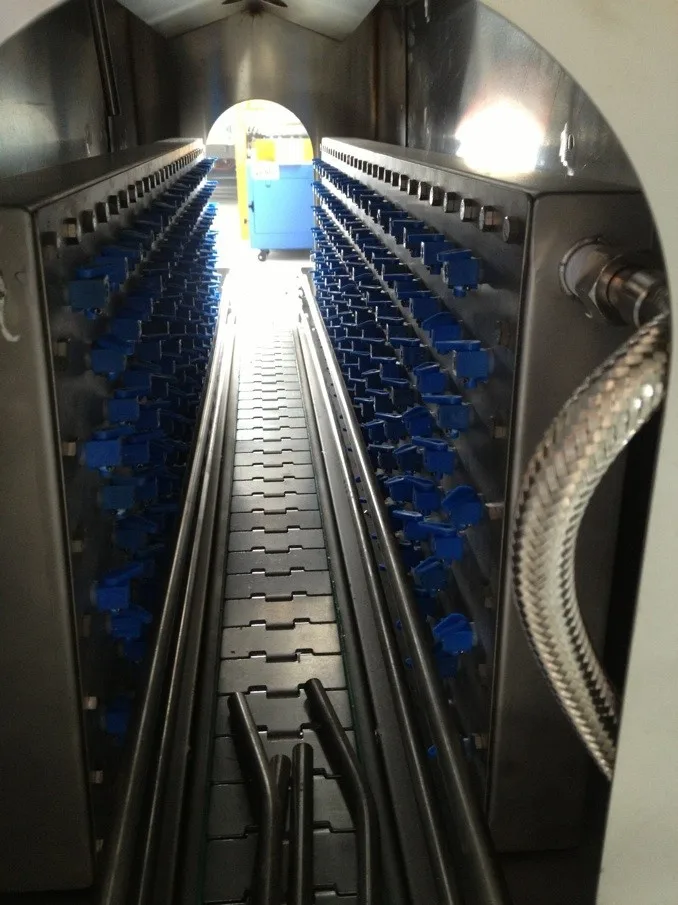

easy adjustment. Achieve perfect shrink effect with lowest power consumption. 5-section design in shrink tunnel, independent temp. control in each section, as well as height adjust and distance adjust between objects. Any shape bottle is able to reach nice-looking shrink effect after simple adjust.
Model
ZBS-83A
Model
LDR24-0.4-Z
Power
150W
Power
12/24 kw
Max. packing size (mm)
Φ120*350H
Voltage
380V, 3 phase
Size of shrink tunnel (mm)
1350*180*380
Pressure
0.4Mpa
Capacity
5000~15000B/H
Volume
27L
Conveyor motor
AC120W/220V
Steam quantity
24kg/h
Conveyor speed
0-10m/min
Weight
76kgs
Loading weight
15kg
Weight
150kg
Machine size (mm)
2400*430*1350
Shrink film
POF PP PVC
The Alfpack Advantage
12-Month Warranty
Coverage on PLC, motors, and heating elements.
Global Spare Parts
DHL dispatch within 24 hours for urgent parts.
Aftersale Support
Direct access to engineers, not just sales staff.
How the QSJ-5040A Wrapping Process Works
The system follows a 4-step automated cycle designed to minimize human error:
01
Auto Feeding
Bottles are conveyed via the stepless speed belt into position.
02
Pneumatic Pushing
The sensor triggers the pusher to move product through the PE film curtain.
03
Sealing & Cutting
The hot blade seals the sleeve instantly. Sensors prevent accidental cuts.
04
Shrinking & Cooling
Package passes through the tunnel and is set by the super cooling fan.
